Neural Networks Dataflow Domain specific Language

Interstellar ASPLOS 2020

Interstellar Using Halide’s Scheduling Language to Analyze DNN Accelerators

Posted by Treaseven on December 19, 2024

DNN Accelerator Design Space

Design Space Overview

  • Dataflow
  • Resource Allocation
  • Loop Blocking

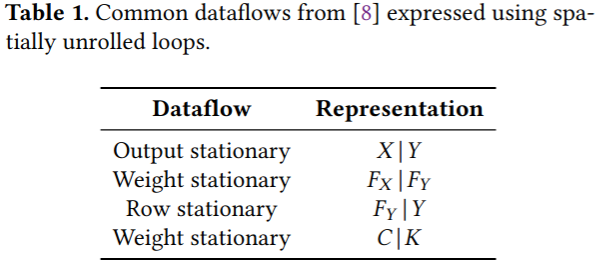

A Formal Dataflow Taxonomy

提出一个基于循环变换的形式化数据流分类方法

Output stationary: 每个PE负责计算一个固定的输出像素位置，输入数据需要在PE间移动，而输出数据保持在原地 Weight stationary: 每个PE保存卷积核的一个权重值不变，输入和输出数据需要在PE间移动 Row stationary: 每个PE处理同一行的计算，适合处理具有行方向局部性的数据 Weight stationary: 每个PE保存特定输入通道和输出通道之间的权重

Results

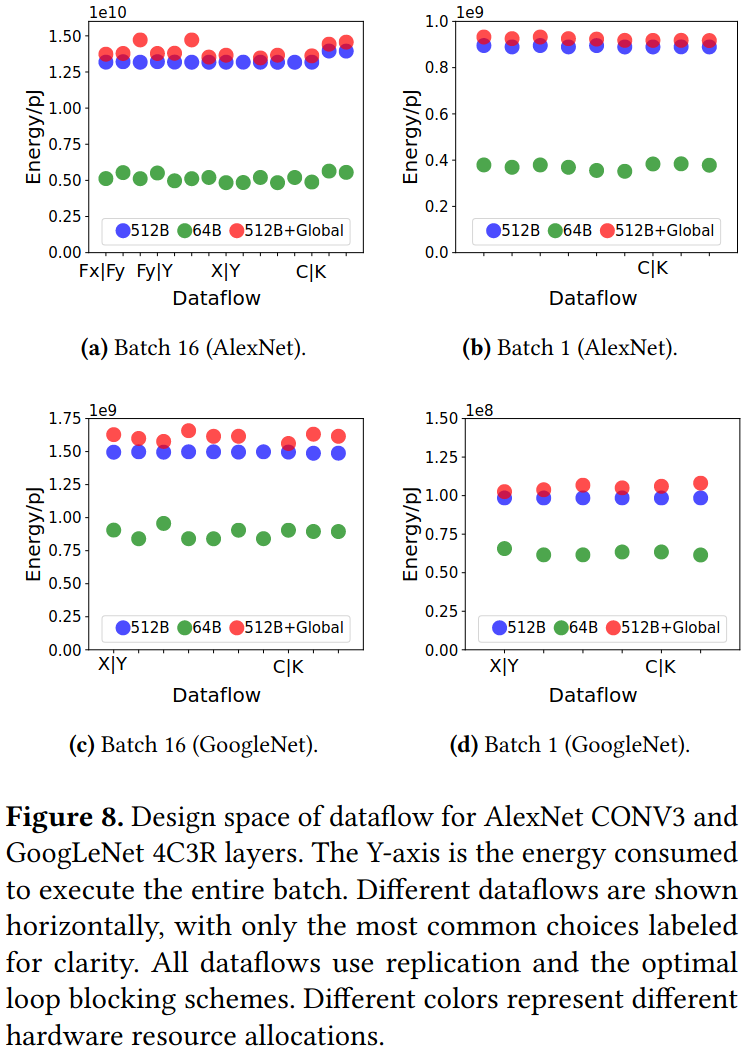

Observation 1: With the same hardware resources, many different dataflows are able to achieve similar and close-to-optimal energy efficiency, as long as proper loop blocking and replication are used

Observation 2: The total energy of an efficient system should not be dominated by any individual level in the memory hierarchy

贡献

(1) 提出一个系统化的DNN加速器描述方法，将加速器设计空间归纳为3个维度：数据流(如何在PE阵列上映射计算)、资源分配(如何分配计算和存储资源)、循环分块(如何组织数据移动和复用)
(2) 利用Halide语言来实现加速器设计(发现Halide的调度语言可以表达DNN加速器需要的各种循环变换、扩展Halide编译器，使其能够生成硬件实现)

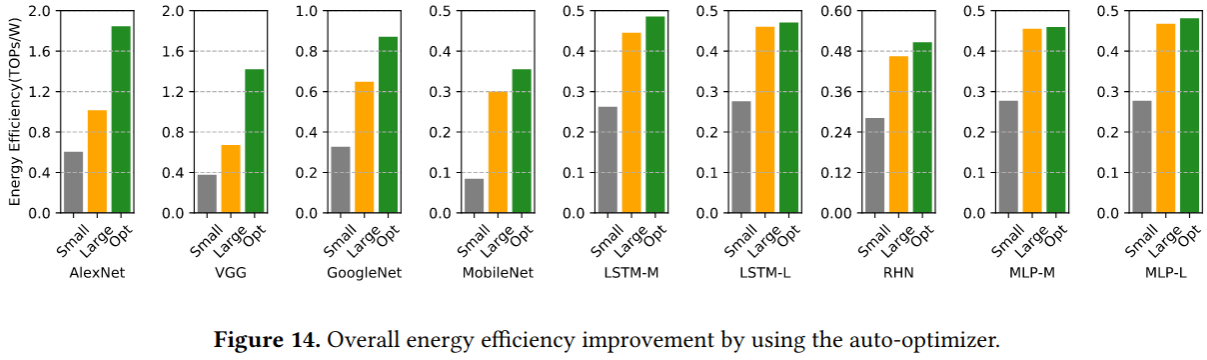

(3) 实验发现数据流的选择不是最关键的：只要适当的循环分块，许多不同的数据流都能达到相似的能效；发现内存层级的设计更为重要：合理的存储层级划分可以显著提升能效

Reference

Interstellar: Using Halide’s Scheduling Language to Analyze DNN Accelerators
