TensorIR An Abstraction for Automatic Tensorized Program Optimization

Posted by Treaseven on December 10, 2024

Motivation

  • 现代硬件加速器引入专门的张量计算原语
  • 传统手动优化库开发成本高，难以适应快速变化的模型和硬件
  • 需要自动化编译方法来利用这些硬件加速能力 面临的挑战 (1) Abstraction for Tensorized Programs：需要一个能表达等价张量化计算的抽象 (2) Large Design Space of Possible Tensorized Program Optimizations：需要在大规模设计空间中找到优化方案 提出TensorIR (1) 引入block构造来分离张量计算 (2) 构建具有正确性验证的变换原语 (3) 设计新的张量化感知自动调度器

Overview

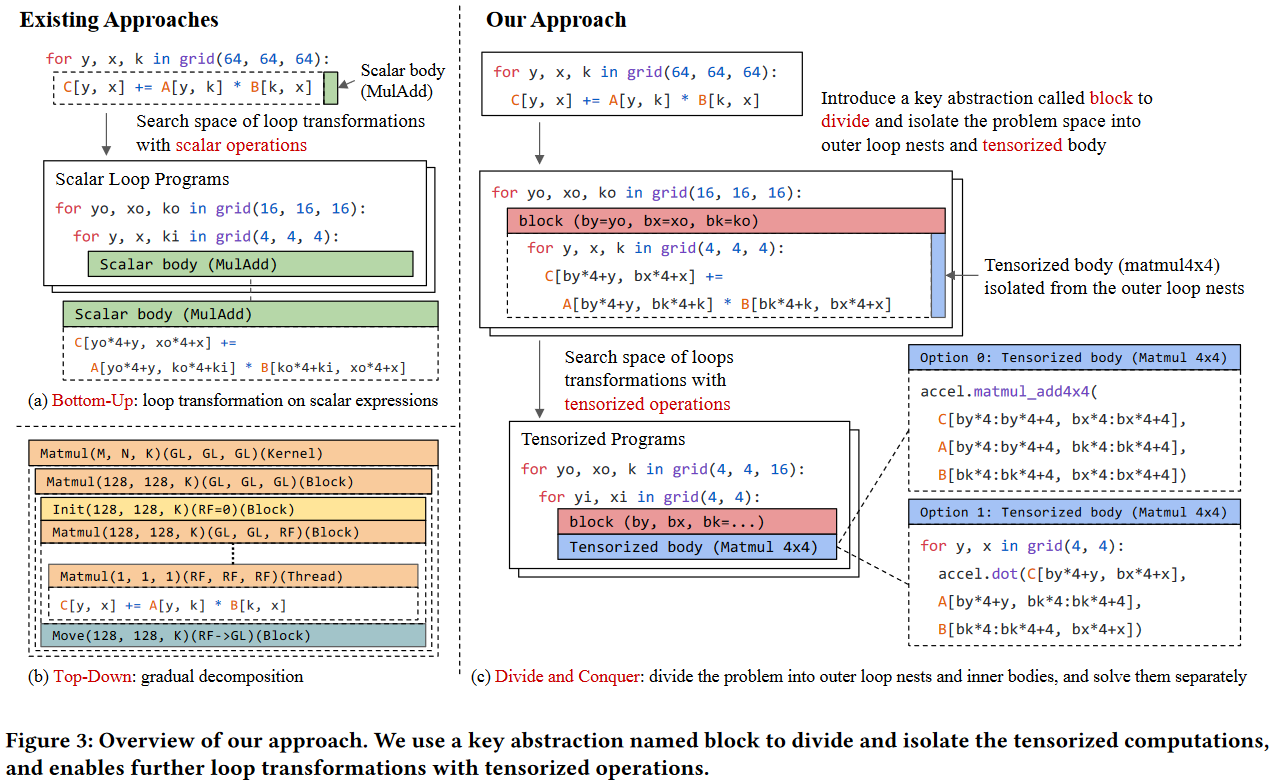

TensorIR Abstraction

Block

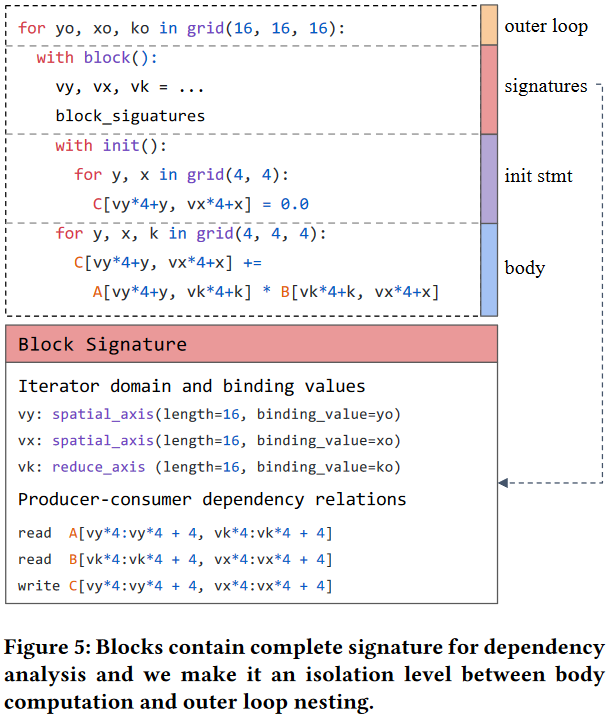

Scheduling Transformations

可调度性的定义
(1) 一个block是”可调度的”.如果它只包含以子block作为叶节点的循环嵌套
(2) 通过分析子block的签名核依赖信息来转换这些可调度block中的循环嵌套
(3) 可调度block可以包含不可调度的子block

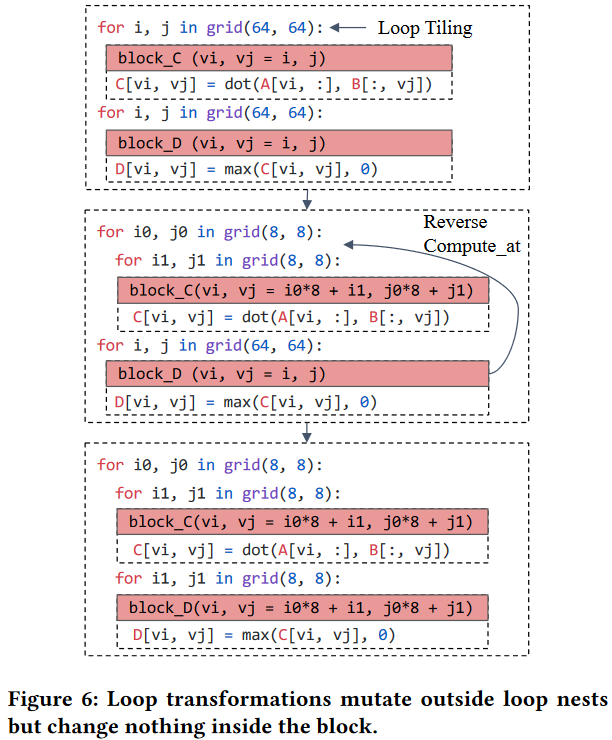

schedule primitive

  • Loop Transformations
  • Blockization

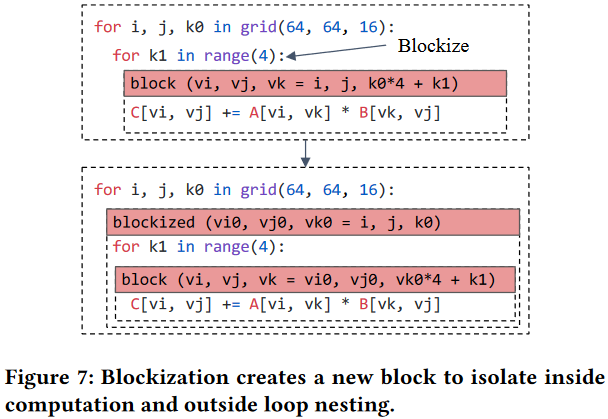

  • Separation of Scheduling and TensorIR

Validation

Loop Nesta Validation: 验证迭代器绑定是否满足迭代域约束
Threading Validation: 线程绑定、协作内存访问、执行作用域
Correctness of Schedule Primitives: 当原语只改变循环嵌套时可以用于验证过程确保正确性；对于blocks的原语找到原语特定的必要条件

Auto-Scheduling Tensorized Programs

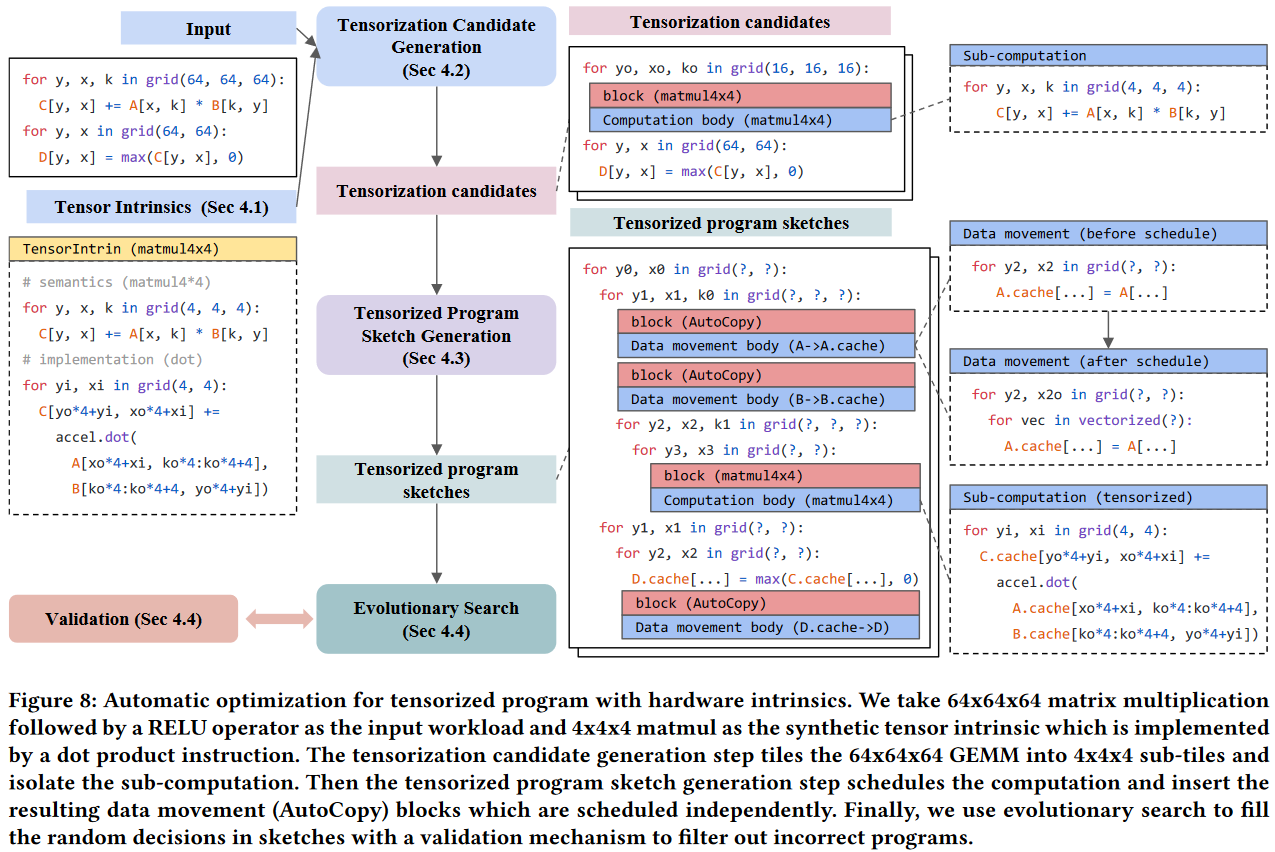

  • 识别张量计算机会
  • 构建程序框架
  • 优化具体参数 引入AutoCopy块：将数据移动作为独立的优化目标、支持灵活的数据布局转换和缓存策略 端到端的优化流程：从高层程序到硬件指令的完整映射；自动处理计算和数据移动的优化

Tensorization Candidate Generation

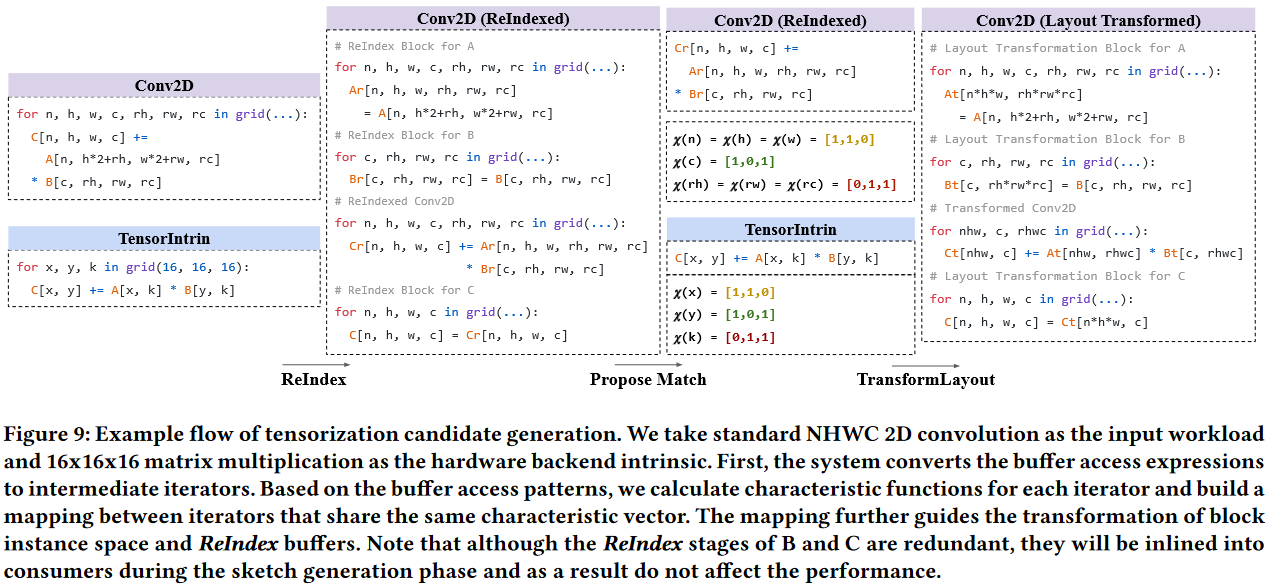

ReIndex的目的是简化访问模式，通过引入中间缓冲区Ar和Br，将复杂的索引计算分解为两步

# 重组输入A的访问模式
Ar[n, h, w, rh, rw, rc] = A[n, h*2+rh, w*w+rw, rc]
# 重组卷积核B的访问
Br[c, rh, rw, rc] = B[c, rh, rw, rc]
# 最终计算
Cr[n, h, w, c] += Ar[n, h, w, rh, rw, rc] * Br[c, rh, rw, rc]

将卷积运算映射到矩阵乘法硬件指令

硬件指令的形式
C[x, y] += A[x, k] * B[k, y]
特征向量χ(v)表示一个迭代器v在不同缓冲区中的出现情况：对每个迭代器，生成一个二进制向量[是否在C中，是否在A中，是否在B中]；比如χ(n)=[1,1,0]表示n出现在C和A中，但不在B中
n, h, w: χ(n) = χ(h) = χ(w) = [1,1,0]
c:       χ(c) = [1,0,1]
rh, rw, rc: χ(rh) = χ(rw) = χ(rc) = [0, 1, 1]
与目标硬件指令对应
x: χ(x) = [1, 1, 0] # 对应n, h, w的模式
y: χ(y) = [1, 0, 1] # 对应c的模式
k: χ(k) = [0, 1, 1] # 对应rh,rw,rc的模式

根据上面的映射将n,h,w三个维度合并成一个维度、rh,rw,rc三个维度合并成一个维度，然后重写成如下操作

Ct[fuse(n,h,w), c] += At[fuse(n,h,w), fuse(rh,rw,rc)] * Bt[fuse(rh,rw,rc), c]

Tensorized Program Sketch Generation

Computation Schedule & Data Movement 传统优化中，计算和数据移动的时间差距较小，使用张量运算原语后，差距显著增大；如果不专门优化数据移动，很容易出现计算单元空闲等待数据的情况

# 原始代码
for i in range(64):
    for j in range(64):
        C[i, j] = A[i, j] + B[i, j]

# 计算调度优化
for i_outer in range(0, 64, 16):
    for j_outer in range(0, 64, 16):
        for i_inner in range(16):
            for j_inner in range(16):
                i = i_outer + i_inner
                j = j_outer + j_inner
                C[i, j] = A[i, j] + B[i, j]

# 数据移动优化
for i_outer in range(0, 64, 16):
    for j_outer in range(0, 64, 16):
        # 数据移动：加载到共享内存
        A_shared = load_to_shared_memory(A[i_outer:i_outer+16, j_outer:j_outer+16])
        B_shared = load_to_shared_memory(B[i_outer:i_outer+16, j_outer:j_outer+16])

        # 计算使用共享内存中的数据
        for i_inner in range(16):
            for j_inner in range(16):
                i = i_outer + i_inner
                j = j_outer + j_inner
                C[i, j] = A_shared[i_inner, j_inner] + B_shared[i_innner, j_inner]

Evaluation

Single Operator Evaluation

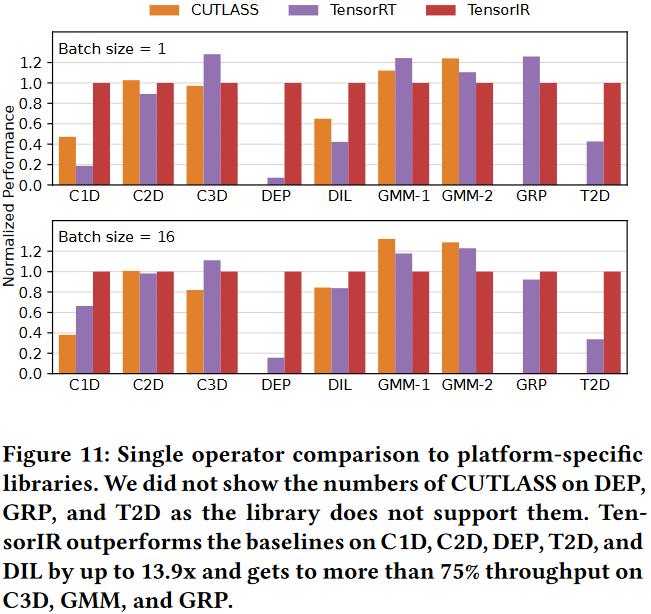

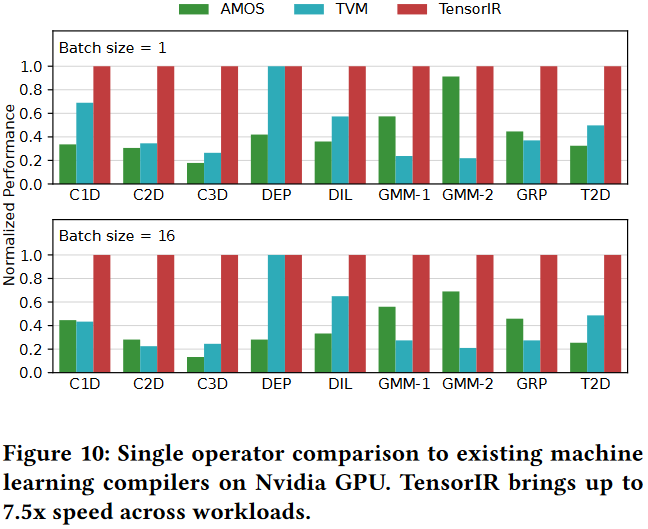

End-to-End Model Evaluation

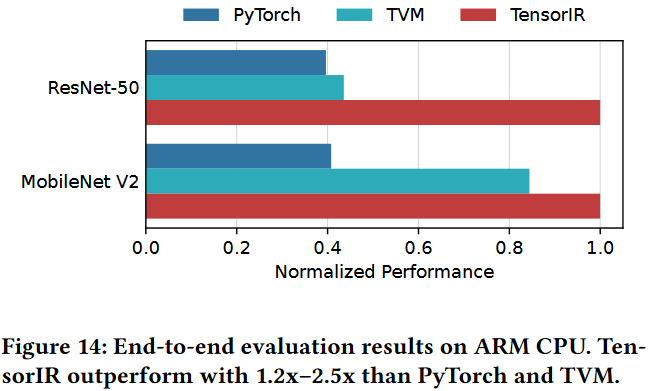

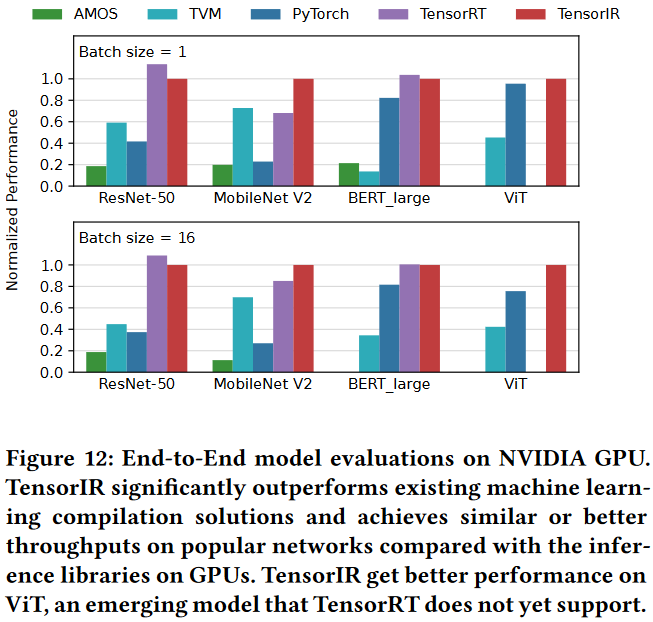

ARM CPU Evaluation

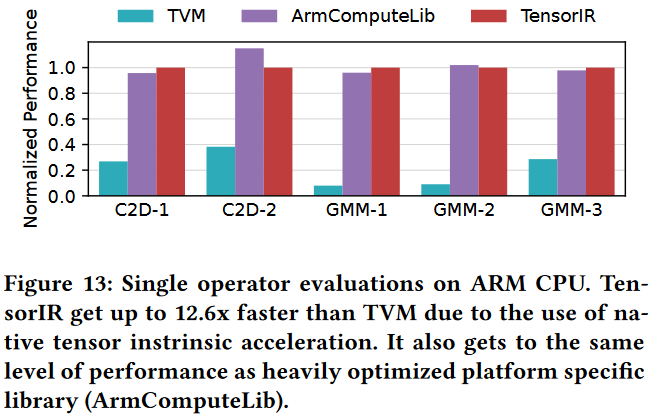

Thinking

(1) 自动调度器的限制 (2) tensorization候选生成的局限 (3) 数据移动优化
