CMLCompiler ICS 2023

Motivatioin

leverage DL’s well-defined unified abstractions and highly mature compilers, optimization technologies, and frameworks
面临的挑战：
(1) 深度学习算子关注张量，经典机器学习关注数组、矩阵、标量和表格
(2) 深度学习模型都是神经网络模型，经典机器学习模型几乎不能用神经网络表示

The Unified Abstraction

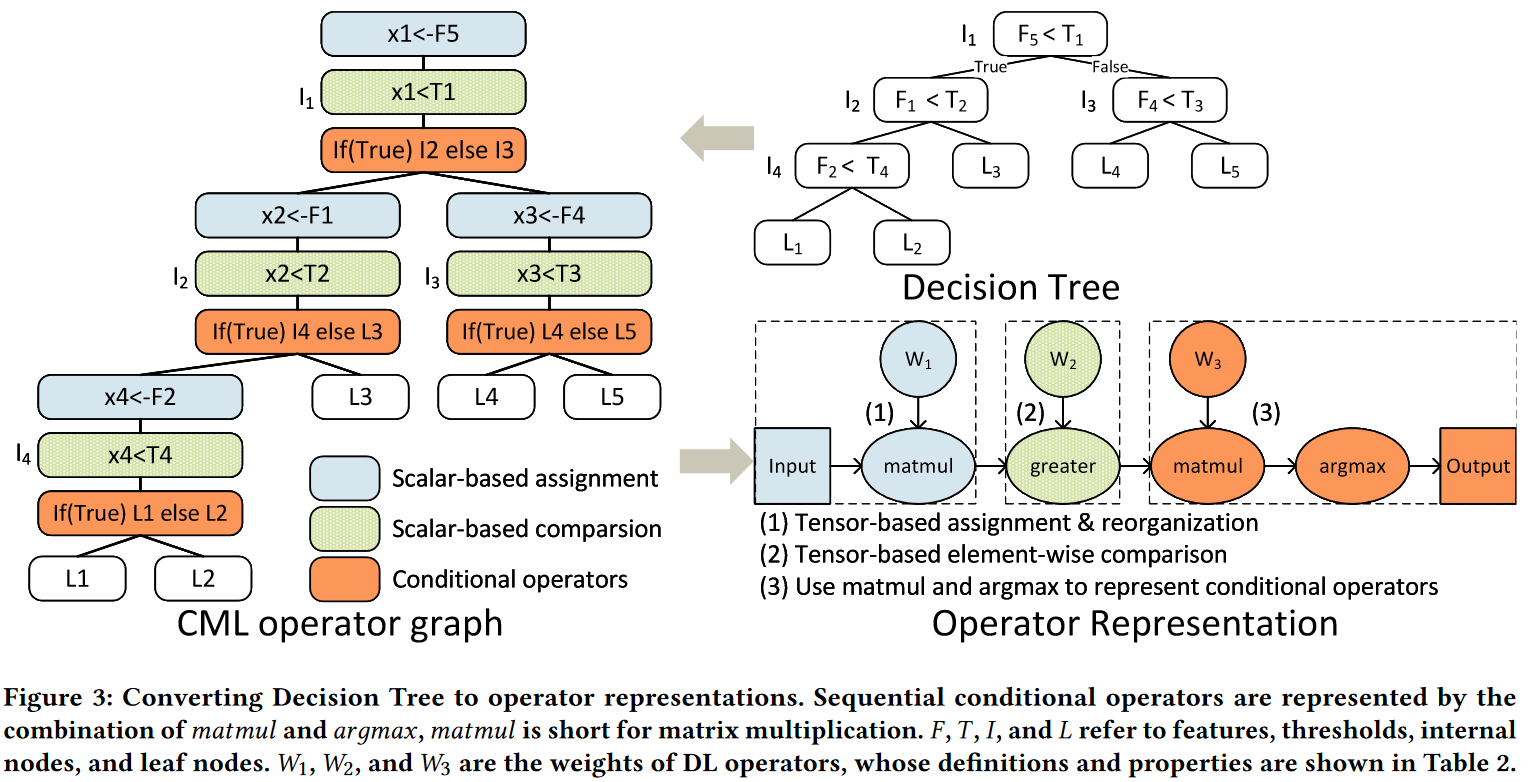

Operator Representation

The features of CML operator representations: 1. the weights of DL operators and CML operator representations have different meanings 2. the frequent operators in DL and CML are not the same

Extended Computational Graph

设计的动机：传统DL计算图默认处理密集的float32类型数据，CML模型中很多操作和权重天然是稀疏或低精度的，直接使用DL计算图会忽略这些特性带来的优化机会

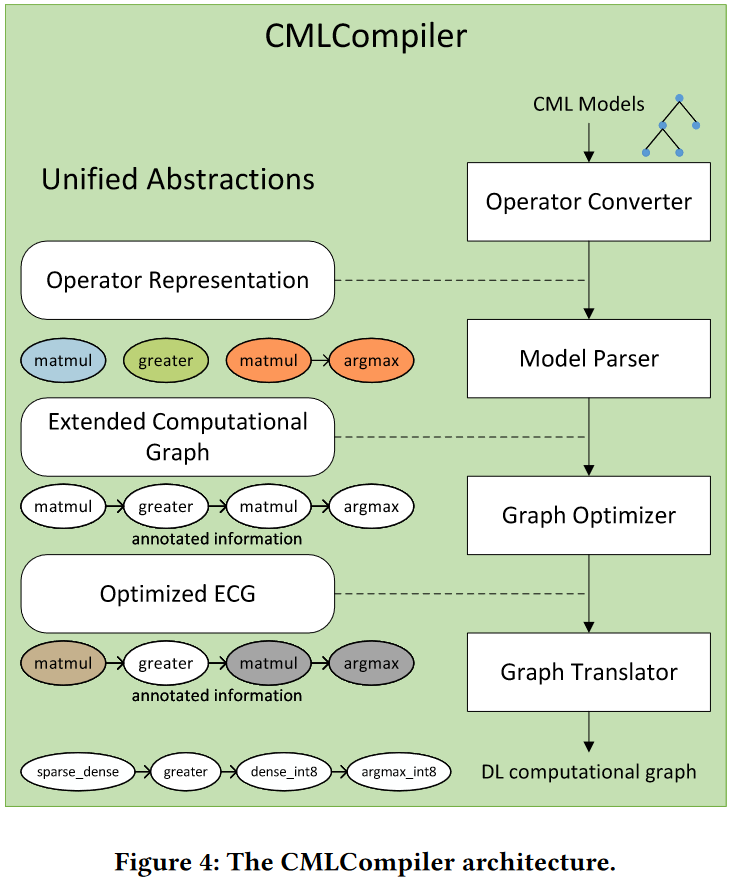

Design

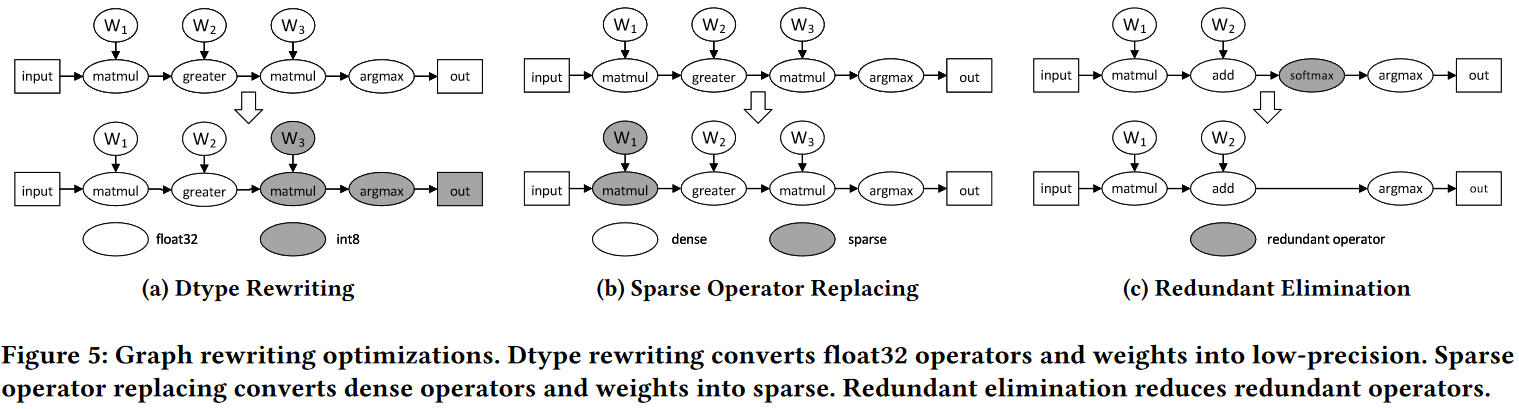

Graph Optimizer

Dtype rewriting: 使用低精度计算替代高精度计算

Sparse operator replacing：识别稀疏权重，将密集算子替换为稀疏实现
Redundant elimination：消除不影响最终结果的冗余算子

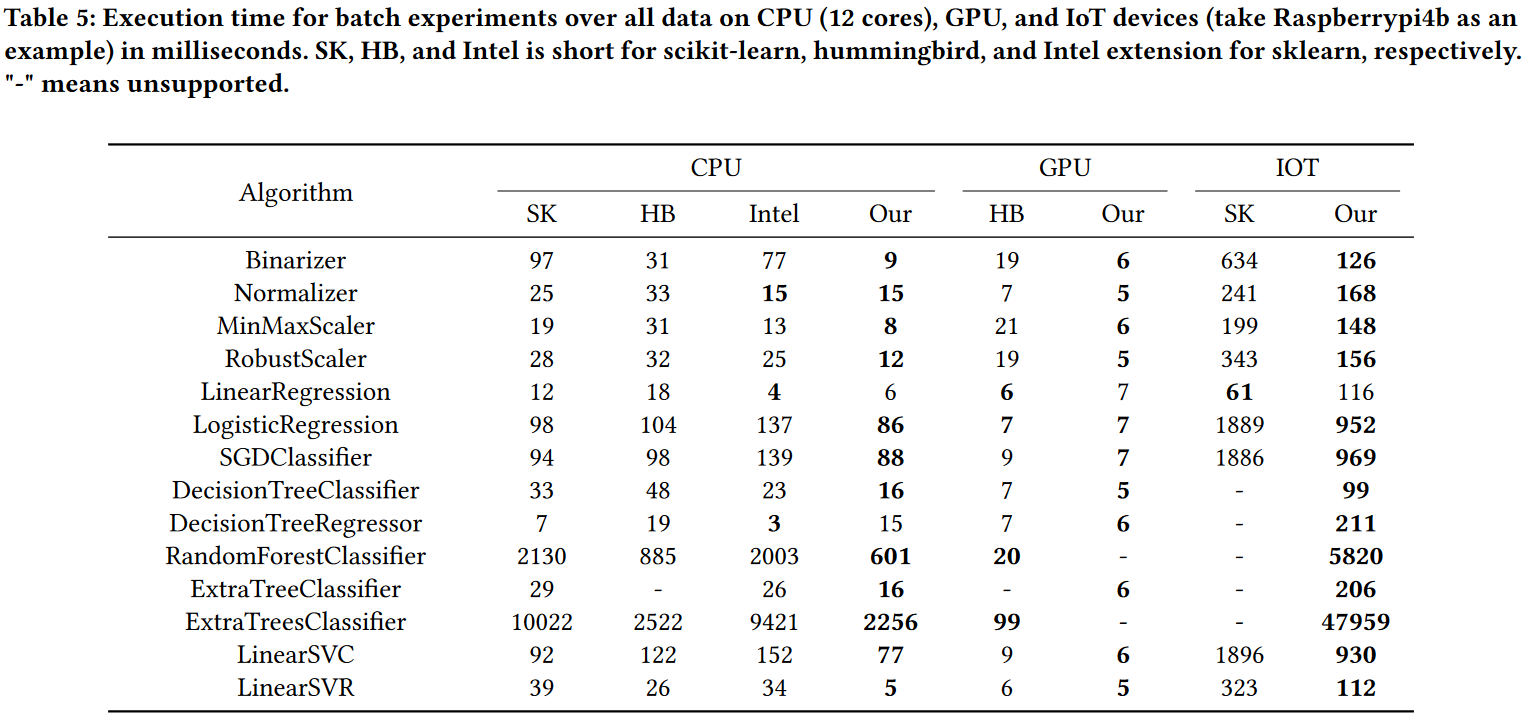

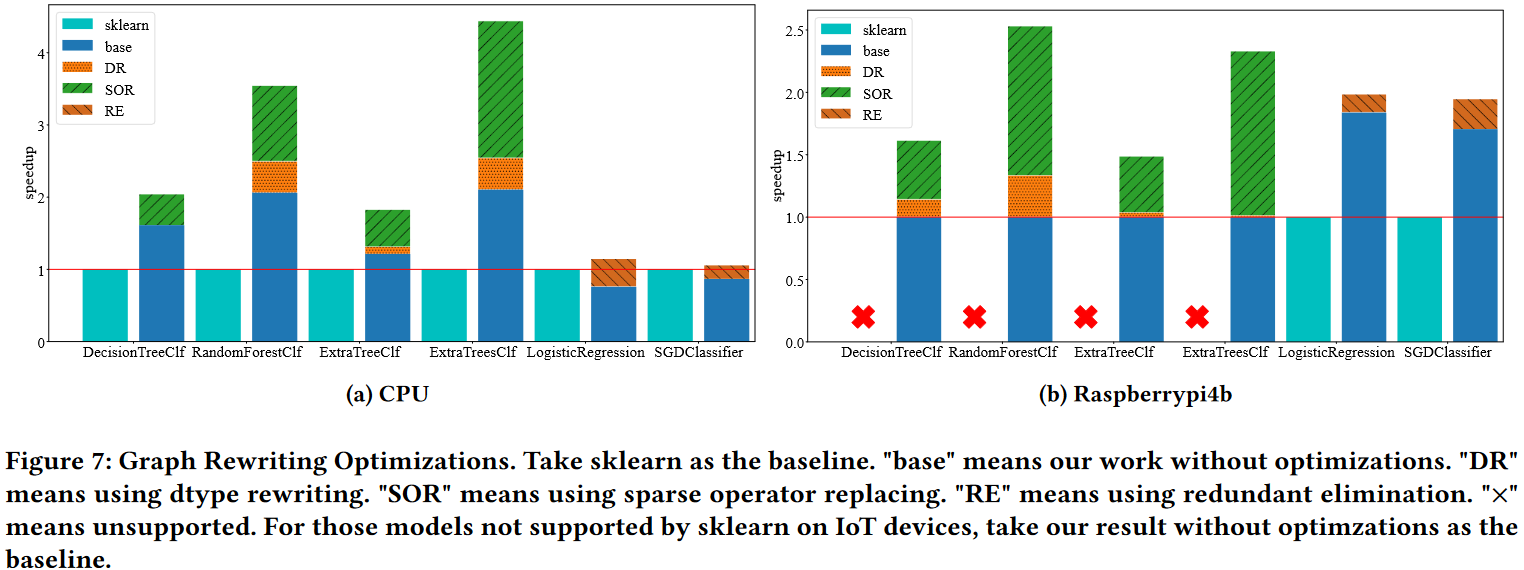

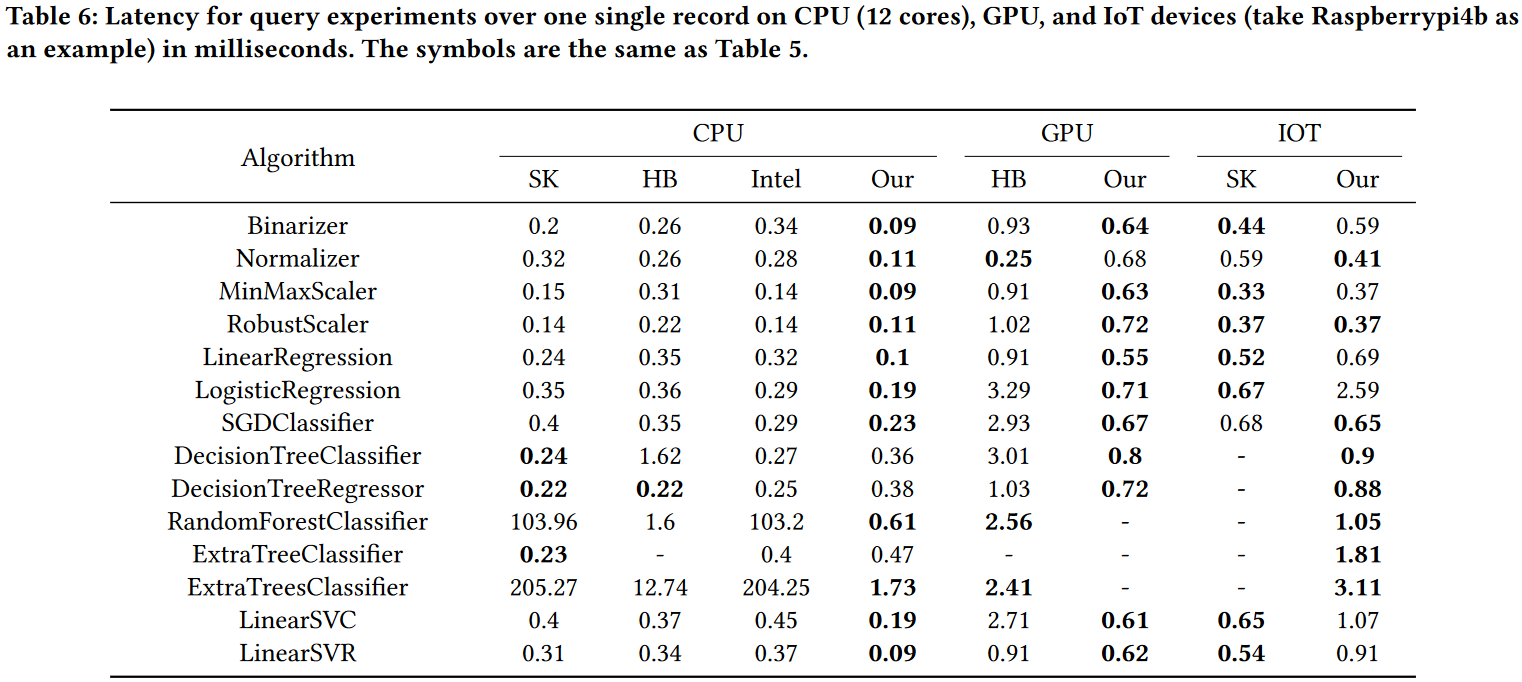

Evaluation

Thinking

(1) 支持算子有限，如矩阵分解算法(SVD相关:矩阵正交化算子、特征值计算算子、特征向量计算算子；PCA相关：协方差矩阵计算算子、降维映射算子；NMF相关)、概率模型(贝叶斯模型：条件概率计算算子、后验概率更新算子、边缘化算子；EM算法：期望计算算子、最大化算子)；降维和流形学习、时间序列算法、集成学习(Stacking: 模型组合算子、预测融合算子；Blending：权重计算算子、加权平均算子、预测集成算子)
(2) 优化方法局限：主要依赖三种图重写优化(算子级优化：算子融合优化、内存优化、向量化优化；图级优化)、缺乏自动优化策略的研究(自动调优)、跨层优化怎么做，这个点在深度模型中目前也没有做到
(3) 评估方面的不足：基准测试数据集单一(主要使用YearPrediction数据集、缺乏在不同规模和特征的数据集上的评估、可以使用更多真实场景的数据集测试)

	CMLCompiler	Hummingbird
相同点	将CML转换为深度学习表示的方式、使用张量计算作为底层计算范式
抽象层次	算子表示和扩展计算图(ECG)、直接面向底层编译优化	基于ONNX中间表示，更关注高层模型转换
优化策略	提供专门的图重写优化	依赖DL框架的通用优化
实现方式	基于TVM实现完整的编译框架，直接生成优化的计算图	通过PyTorch/ONNX等框架转换，间接使用DL框架的优化能力

补充材料

Binaraizer:用于将数值特征转换为二值 MinMaxScaler: 用于将特征缩放到指定范围 MaxAbsScaler: 通过除以每个特征的最大绝对值来进行缩放 StandScaler: 标准化缩放 RobustScaler: 稳健缩放

Reference

CMLCompiler: A Unified Compiler for Classical Machine Learning
